Ideal for
- Dark rides: Many scenes run in network sync, with audio over AES67 and PTP synchronization.
- Animatronics: Servo outputs, analog outputs and CAN drive figures and actuators directly.
- Shows with announcements and music: 1 microphone input and 1 line input for paging, ducking and background music.
- Installations with third-party equipment: SMPTE in/out, DMX in/out, RS-232 and RS-485 integrate lighting, video and control systems from other manufacturers.
Features
- Standalone operation: runs without a PC. Shows can be triggered by buttons, sensors, a schedule (real-time clock) and much more.
- Polyphonic audio: plays up to 8 uncompressed audio tracks simultaneously, such as music, sound effects and voice-overs, each on its own channel. Everything runs directly from the controller, so no separate audio player is needed. Output via the audio connector (Sub-D) or over the network.
- Network audio: all 8 channels also as a DSP-controlled AES67/RAVENNA stream with PTP synchronization, straight to networked speakers, amplifiers or mixing consoles, and in sync across many controllers.
- Flexible monitor outputs: for subwoofer (LFE) and down-mix channels.
- Lighting control: DMX in/out plus Art-Net and sACN for lighting consoles and networked fixtures.
- Programming: on a timeline in Conductor or Showforge, extendable with WEM|Script.
ProCommander® HX, HXb or HXi?
| Key Features | ProCommander® HX | ProCommander® HXb | ProCommander® HXi |
|---|---|---|---|
| Polyphonic audio channels | 8 via audio output or 8 via AES67/RAVENNA | 4 via audio output or 8 via AES67/RAVENNA | 2 via audio output or 8 via AES67/RAVENNA |
| Microphone / line input | 1 / 1 | – | – |
| Ethernet | 2 | 1 | 2 |
| Servo outputs | 8 | 8 | 4 |
| Analog inputs | 8 | 8 | – |
| CAN outputs | 1 (up to 16 actuators) | 1 (up to 16 actuators) | 2 (up to 16 actuators each) |
| DMX out | 1 universe (512) | 1 universe (512) | 4 universes |
| RS-232 | 4 | 3 | 3 |
In short: the ProCommander® HX is the most complete option, with 8 audio channels and inputs for announcements. The ProCommander® HXb fits when 4 audio channels are enough. The ProCommander® HXi is built for lighting with 4 DMX universes and motor control over 2 CAN buses.
In use at
- Piraten in Batavia, Europa-Park: over 70 ProCommander and Pro I/O controllers, AES67 audio, 16 universes of Art-Net/sACN
In celebartion of our 10th anniversary, the Weigl ProCommander® X Series provides advanced networking, polyphony, digital motor control and more, utilizing familiar Weigl timelines and our continually evolving WEM|Script™ ASCII logic structure.
Mix and match your favorite Pro I/O™ modules, integrate external lighting or media interfaces and build your show in Conductor or Showforge® in real-time.

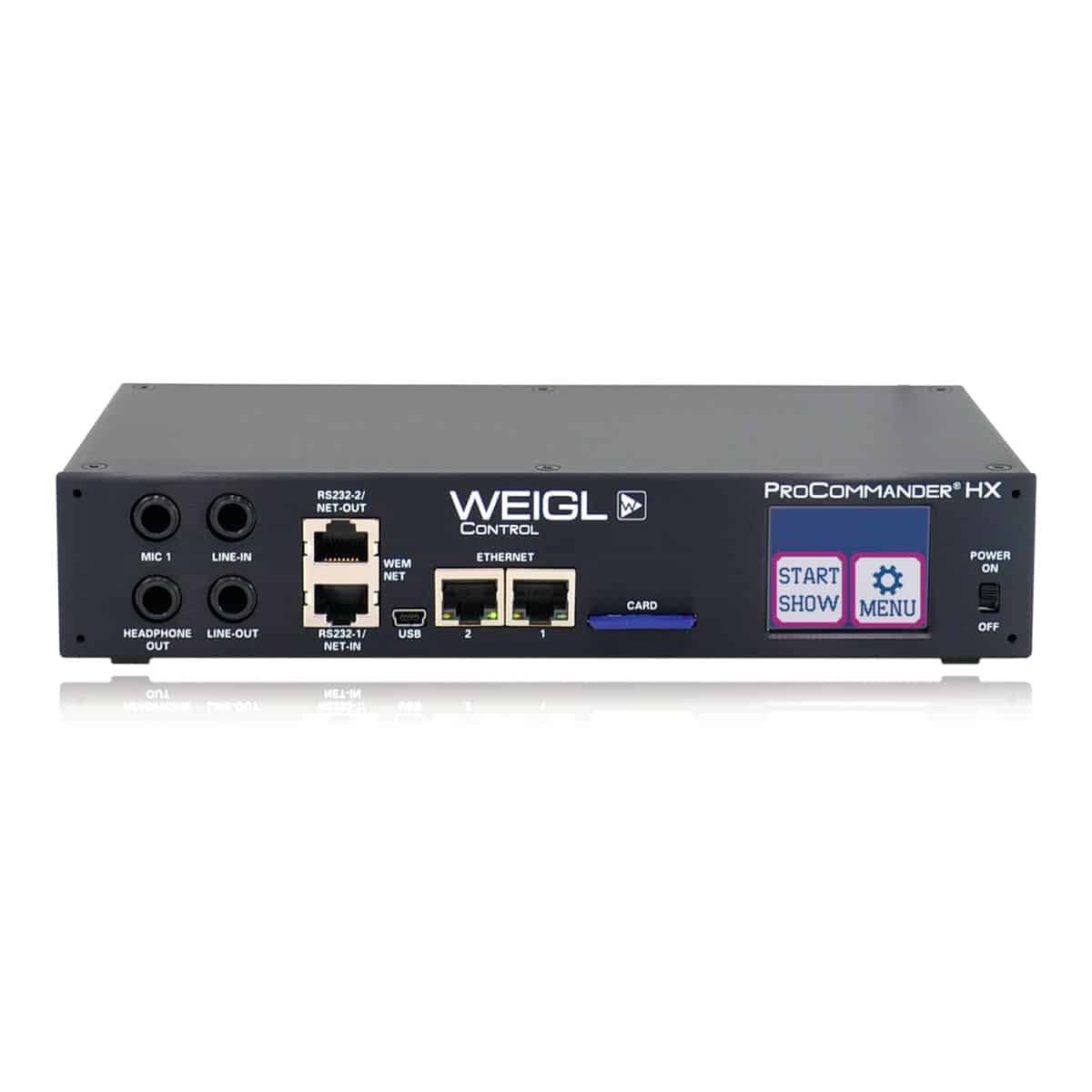

The ProCommander® HX extends the key features of the ProCommander® AX with the addition of 8 uncompressed polyphonic, DSP controlled audio channels with AES67 support. Flexible monitor outputs provide options for LFE effects & down-mix channels, as well as SMPTE In/Out for synchronization with external components. Microphone and line-level inputs provide paging, ducking and background music.
